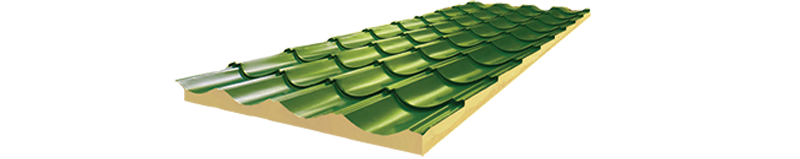

Ardavaz design panel, Tulips model, one-sided sheet

Sizes

(x) (mm) 30
effective width (mm)890
ineffective width (mm)945
maximum lengthIn desired lengths up to 12 meters

Insulation layer material

Polyurethane
density 40±2kg/m³
Heat transfer coefficient0/0159~0/0260
foam typePUR (B2) , PIR

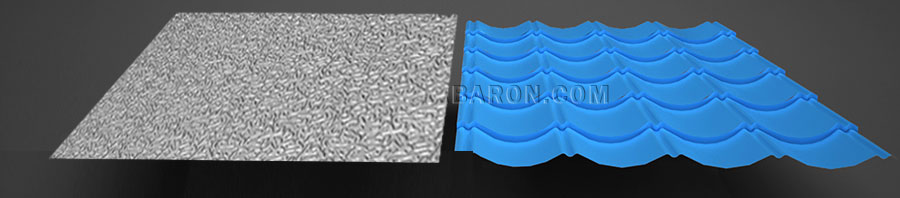

Material of top and bottom layers

top sheet Pre-painted galvanized / Pre-painted alloy zinc / Pre-painted aluminum / Steel
bottom sheet Patterned foil layer / plain foil layer
thickness (top sheet) 0.3 to 0.7 mm
foaming type cold rolling

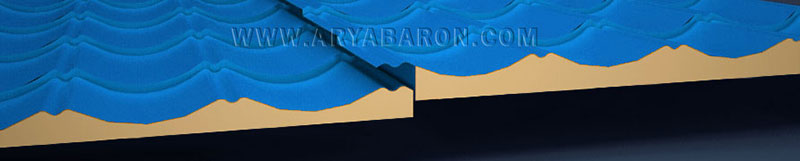

connecting together

Color and design of the top sheet
