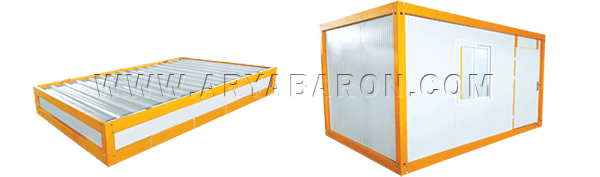

This type of conex consists of metal frame and prefabricated walls (sandwich panels) which are optimally packed and assembled at the desired location. This feature has made it possible to transport and transfer the conex in large numbers and with the lowest cost. Currently, this product is used in many construction sites, villages, disaster areas, etc.
Some uses of Arya Baron conex:
Prayer room – training class – shop – clinic and emergency room – guard – dormitory – pilgrim accommodation – accommodation camps – bank pass – workshop equipment – telecommunication booths – offices – newsstands and tickets and …. Also, Arya Baron, using modern software, has the ability to design and calculate sheds with special uses, and in fully automatic production lines, mass orders are prepared in the shortest time with the highest quality.
Technical specifications of on-site assembly complexes:
- Skeleton: columns, floor chassis and roof coil made of steel sheet and in the form of stable bent profiles.
- Color: Sandblast and then furnace color
- Roof: Shadowline sandwich panel with two pre-painted galvanized or aluzinc sheets and polyurethane insulation foam with fire resistance class B2
- Walls: 40 mm thick polyurethane wall sandwich panel with two pre-painted galvanized or aluzinc sheets.
- Floor: grid with profile and on trapezoidal bent sheet, pressed wood layer and then PVC or parquet flooring (according to buyer's opinion)
- Door: sandwich panel door with lock and first-class handle
- Window: aluminum with double-glazed glass
- Electricity and lighting system: wiring in face and inside PVC ducts and using cables, fuses and switches and standard sockets.
Frequently Asked On-site assembly conex
What is an on-site assembly conex?
On-site conex assembly or on-site assembly conex are a group of conexes that are built and used from the ground up at the project site. The importance of building a conex on site is when it is not possible to transport and move conex that made in the workshop to the place of installation of the conex. In this situation, on-site assembly conex are the best choice. Several factors can lead to the impossibility of moving the conex to a place. For example, if there are obstacles in the street such as tall trees, narrow streets, or the construction of sheds on the roofs of buildings, there is only one option, and that is to use assembly conex on site.
The construction of the conex on the site is as follows: first, the materials required for the construction of them are transported to the project site in the form of separate parts, and then the construction of the conex takes place on the site; For this reason, they are called assembly conex or on-site execution conex. The skeleton of the on-site assembly conex is made of metal and its walls are made of sandwich panels. The various components of them are packed and transported to the project site. Due to the light weight of the sandwich panel and other components of the on-site assembly conex, they can be transported even over long distances.
Technical specifications of on-site execution conex
There are conditions for building a conex on site. For example, special materials are used to build the conex on site. Of course, note that the material for the construction of them is selected according to the customer’s request and the application he expects from it. They have different types. Normal conex, sandwich conex, composite, etc., all these types of them will be able to be assembled on site. But to choose the best material for the construction of the conex in the place, you must consider some factors:
- The speed of execution of the conex
- Durability and strength of the condex
The resistance of the shelter to the weather and climate conditions of the place where it is to be installed.
