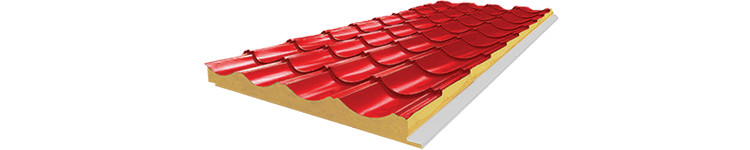

Ardavaz design panel, Tulips double-sided model
Sizes
| (x) (mm) | 30 |
| effective width (mm) | 890 |
| ineffective width (mm) | 980 |
| maximum length | In desired lengths up to 12 meters |
Insulation layer material
| density | 40±2kg/m³ |
| Heat transfer coefficient | 0/0159~0/0260 |
| foam type | PUR (B2) , PIR |
Material of top and bottom layers
| top sheet | Pre-painted galvanized / Pre-painted aluzinc / Pre-painted aluminum / Steel |
| thickess (top sheet) | 0.3 to 0.7 mm |
| foaming type | cold rolling |
connecting together

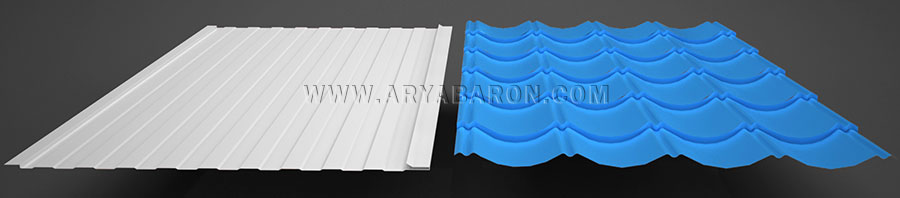

Color and design of the top sheet
